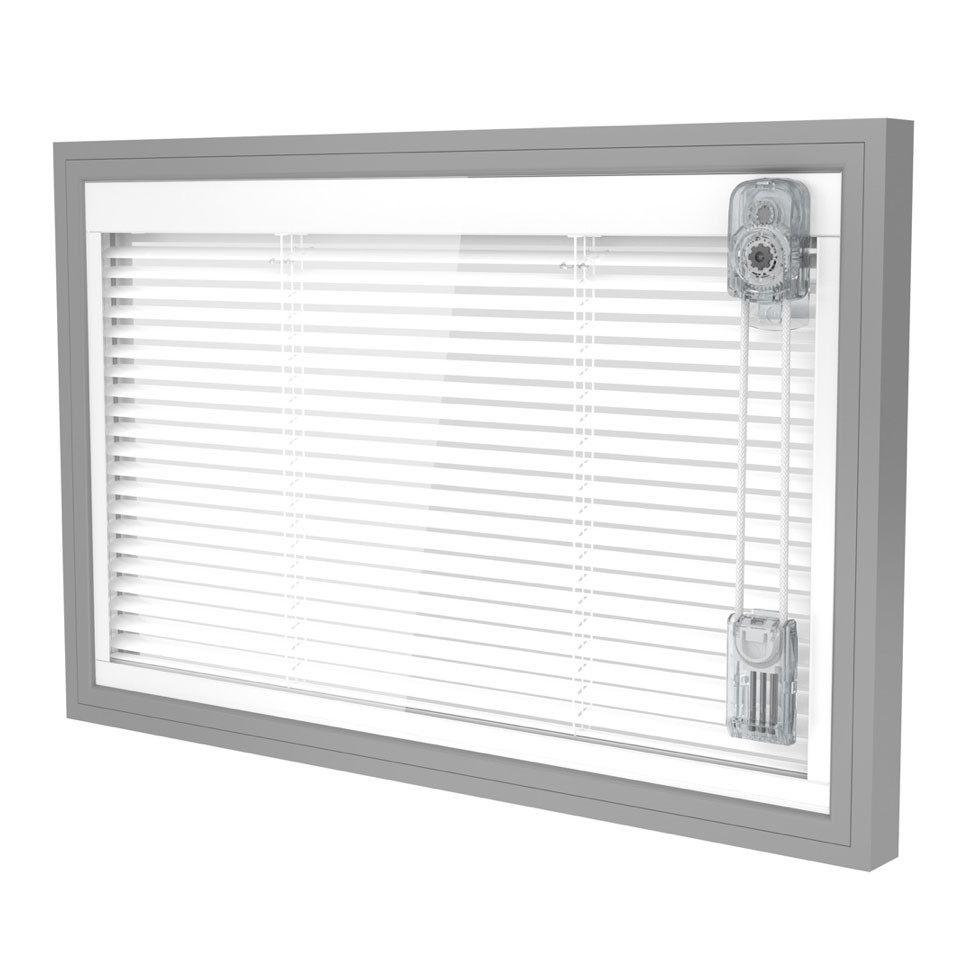

SL27-29-32C Venetian
ScreenLine® SL27-29-32C is a patented magnetic system with manual operation (raising and tilting function) for venetian blinds incorporated within 27-mm or 29-mm or 32-mm insulating glass units.
The external magnetic device applied on the glass by means of high-resistance adhesive tape contains a cord loop and a magnet that is perfectly interfaced with the magnetic joint of the internal drive, which is completely housed inside the head rail. The movement provided to the cord enables the rotation of the magnets that activate the blind. The cord is kept under tension by means of a special cord tensioner applied on the glass.
SL27-29-32C venetian is particularly suited for structural façades, although there are actually no limits to its application.
It ensures with time the insulating properties of the double or triple glass unit, notably protection from dirt or weather conditions. The integrated unit can be fitted into the window frame like standard insulating glass.
System SL29C is supplied with warm edge spacer bars as standard.
